The Q angle and Kids: The Basics

Screen Shot 2017-05-01 at 3.37.08 PM.png

Genu valgum in kids: What you need to know

We have all seen this. The kid with the awful “knock knees”.  It is a Latin word “which means “bent” or “knock kneed”. It appears to have 1st been used in 1884.

This condition, where the Q angle angle exceeds 15 degrees, usually presents maximally at age 3 and should resolve by age 9. It is usually physiologic in development due to obliquity of the femur, when the medial condyle is lower than the lateral. Normal development and weight bearing lead to an overgrowth of the medial condyle of the femur. This, combined with varying development of the medial and lateral epiphysies of the tibial plateau leads to the valgus development. Gradually, with increased weight bearing, the lateral femoral condyle (and thus the tibial epiphysis) bear more weight and this appears to slow, and eventually reverse the valgum.

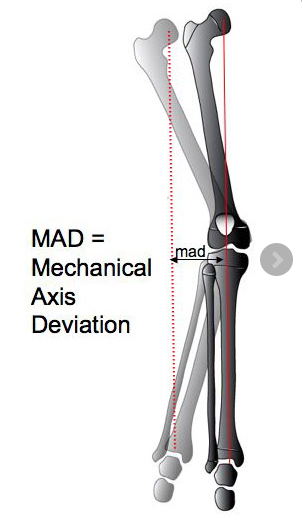

Normal knee angulation usually progresses from 10-15 degrees varus at birth to a maximal valgus angle of 10-15 degreesat 3-3.5 years (see picture).  The valgus usually decreases to an adult angle of 5-7 degrees.  Remember that in women, the Q angle should be less than 22 degrees with the knee in extension and in men, less than 18 degrees. It is measured by measuring the angle between the line drawn from the ASIS to the center of the patella and one from the center of the patella through the tibial tuberosty, while the leg is extended.

Further evaluation of a child is probably indicated if:

  • The angle is greater than 2 standard deviations for their age (see chart)
  • If their height is > 25th percentile
  • If it is increasing in severity
  • If it is developing asymmetrically

Management is by serial measurement of the intermalleolar distance (the distance between ankles when the child’s knee are placed together) to document gradual spontaneous resolution (hopefully). If physiologic genu valgum persists beyond 7-8 years of age, an orthopaedic referral would be indicated but certainly intervention with attempts at corrective exercises and gait therapy should be employed. Persistence in the adult can cause a myriad of gait, foot, patello femoral and hip disorders, and that is the topic on another post.

Promotion of good foot biomechanics through the use of minimally supportive shoes, encouraging walking on sand (time to take that trip to the beach!), walking on uneven surfaces (like rocks, dirt and gravel), gentle massage (to promote muscle facilitation for those muscles which test weak (origin/insertion work) and circulation), gait therapeutic exercises and acupuncture when indicated, can all be helpful.
